NAME

r.sim.terrain - Dynamic landscape evolution model

KEYWORDS

SYNOPSIS

r.sim.terrain

r.sim.terrain --help

r.sim.terrain [-f] elevation=name runs=string mode=string [rain_intensity=integer] [rain_duration=integer] [precipitation=name] [k_factor=name] [k_factor_value=float] [c_factor=name] [c_factor_value=float] [m=float] [n=float] [walkers=integer] [runoff=name] [runoff_value=float] [mannings=name] [mannings_value=float] [detachment=name] [detachment_value=float] [transport=name] [transport_value=float] [shearstress=name] [shearstress_value=float] [density=name] [density_value=float] [mass=name] [mass_value=float] [grav_diffusion=float] [erdepmin=float] [erdepmax=float] start=string rain_interval=integer temporaltype=name [threads=integer] elevation_timeseries=name [depth_timeseries=name] [erdep_timeseries=name] [flux_timeseries=name] [difference_timeseries=name] [--overwrite] [--help] [--verbose] [--quiet] [--ui]

Flags:

-f: Fill depressions
--overwrite: Allow output files to overwrite existing files
--help: Print usage summary
--verbose: Verbose module output
--quiet: Quiet module output
--ui: Force launching GUI dialog

Parameters:

elevation=name [required]: Name of input elevation raster map
runs=string [required]: Run for a single rainfall event or a series of events; Options: event, series; Default: event; event: single rainfall event; series: series of rainfall events
mode=string [required]: SIMWE erosion deposition, USPED transport limited, or RUSLE 3D detachment limited mode; Options: simwe_mode, usped_mode, rusle_mode; Default: simwe_mode; simwe_mode: SIMWE erosion deposition mode; usped_mode: USPED transport limited mode; rusle_mode: RUSLE 3D detachment limited mode
rain_intensity=integer: Rainfall intensity in mm/hr; Default: 50
rain_duration=integer: Total duration of storm event in minutes; Default: 60
precipitation=name: Precipitation file; Name of input precipitation file
k_factor=name: K factor; Soil erodibility factor
k_factor_value=float: K factor constant; Soil erodibility constant; Default: 0.25
c_factor=name: C factor; Land cover factor
c_factor_value=float: C factor constant; Land cover constant; Default: 0.1
m=float: Water flow exponent; Water flow exponent; Default: 1.5
n=float: Slope exponent; Slope exponent; Default: 1.2
walkers=integer: Number of walkers (max = 7000000); Default: 1000000
runoff=name: Runoff coefficient; Runoff coefficient (0.6 for bare earth, 0.35 for grass or crops, 0.5 for shrubs and trees, 0.25 for forest, 0.95 for roads)
runoff_value=float: Runoff coefficient; Runoff coefficient (0.6 for bare earth, 0.35 for grass or crops, 0.5 for shrubs and trees, 0.25 for forest, 0.95 for roads); Default: 0.35
mannings=name: Manning's roughness coefficient; Manning's roughness coefficient
mannings_value=float: Manning's roughness coefficient; Manning's roughness coefficient; Default: 0.04
detachment=name: Detachment coefficient; Detachment coefficient
detachment_value=float: Detachment coefficient; Detachment coefficient; Default: 0.01
transport=name: Transport coefficient; Transport coefficient
transport_value=float: Transport coefficient; Transport coefficient; Default: 0.01
shearstress=name: Shear stress coefficient; Shear stress coefficient
shearstress_value=float: Shear stress coefficient; Shear stress coefficient; Default: 0.0
density=name: Sediment mass density; Sediment mass density in g/cm^3
density_value=float: Sediment mass density; Sediment mass density in g/cm^3; Default: 1.4
mass=name: Mass of sediment per unit area; Mass of sediment per unit area in kg/m^2
mass_value=float: Mass of sediment per unit area; Mass of sediment per unit area in kg/m^2; Default: 116.
grav_diffusion=float: Gravitational diffusion coefficient; Gravitational diffusion coefficient in m^2/s; Default: 0.1
erdepmin=float: Minimum values for erosion-deposition; Minimum values for erosion-deposition in kg/m^2s; Default: -0.5
erdepmax=float: Maximum values for erosion-deposition; Maximum values for erosion-deposition in kg/m^2s; Default: 0.5
start=string [required]: Start time in year-month-day hour:minute:second format; Default: 2016-01-01 00:00:00
rain_interval=integer [required]: Time interval between evolution events in minutes; Default: 1
temporaltype=name [required]: The temporal type of the space time dataset; Options: absolute, relative; Default: absolute
threads=integer: Number of threads for multiprocessing; Default: 1
elevation_timeseries=name [required]: Name of the output space time raster dataset; Default: elevation_timeseries
depth_timeseries=name: Name of the output space time raster dataset; Default: depth_timeseries
erdep_timeseries=name: Name of the output space time raster dataset; Default: erdep_timeseries
flux_timeseries=name: Name of the output space time raster dataset; Default: flux_timeseries
difference_timeseries=name: Name of the output space time raster dataset; Default: difference_timeseries

DESCRIPTION
EXAMPLES
ERROR MESSAGES
REFERENCES
SEE ALSO
AUTHORS

DESCRIPTION

r.sim.terrain is a short-term landscape evolution model that simulates topographic change for both steady state and dynamic flow regimes across a range of spatial scales. It uses empirical models (RUSLE3D & USPED) for soil erosion at watershed to regional scales and a physics-based model (SIMWE) for shallow overland water flow and soil erosion at subwatershed scales to compute short-term topographic change. This either steady state or dynamic model simulates how overland sediment mass flows reshape topography for a range of hydrologic soil erosion regimes based on topographic, land cover, soil, and rainfall parameters.

EXAMPLES

Basic instructions

A basic example for the North Carolina sample dataset. Install the add-on module r.sim.terrain. Copy the raster elevation map elev_lid792_1m from the PERMANENT mapset to the current mapset. Set the region to this elevation map at 1 meter resolution. Run r.sim.terrain with the RUSLE model for a 120 min event with a rainfall intensity of 50 mm/hr at a 3 minute interval. Set the empirical coefficients m and n to 0.4 and 1.3 respectively. Use the `-f` flag to fill depressions in order to reduce the effect of positive feedback loops.

g.extension  extension=r.sim.terrain
g.copy raster=elev_lid792_1m@PERMANENT,elevation
g.region raster=elev_lid792_1m res=1
r.sim.terrain -f elevation=elevation runs=event mode=rusle_mode rain_intensity=50.0 rain_duration=120 rain_interval=3 m=0.4 n=1.3

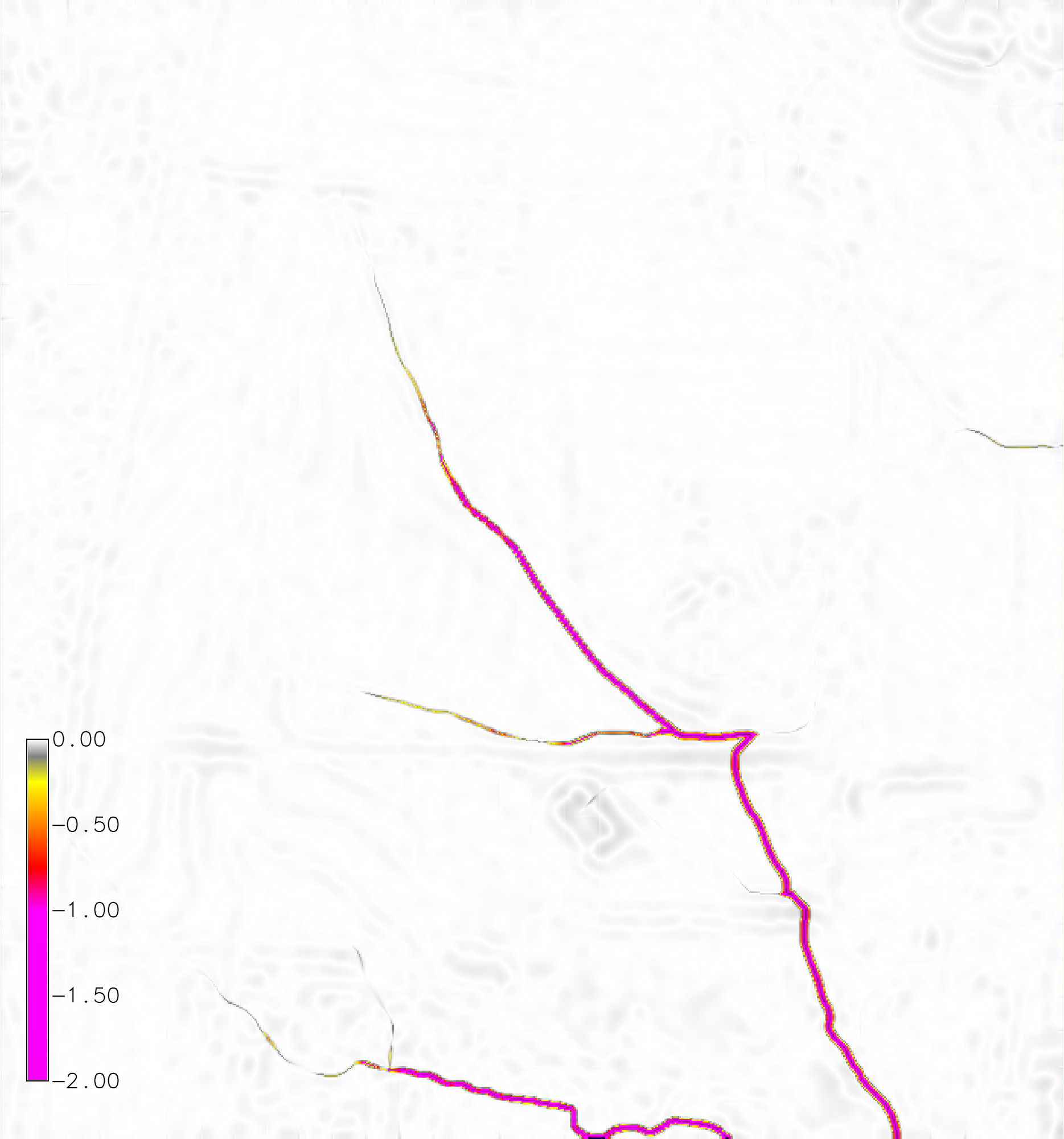

Figure: Net difference (m) for a dynamic RUSLE simulation of a 120 min event with a rainfall intensity of 50 mm/hr with a 3 minute interval.

Spatially variable soil and landcover

Clone or download the landscape evolution sample dataset with a time series of lidar-based digital elevation models and orthoimagery for a highly eroded subwatershed of Patterson Branch Creek, Fort Bragg, NC, USA.

Run r.sim.terrain with the simwe model for a 120 min event with a rainfall intensity of 50 mm/hr. Use a transport value lower than the detachment value to trigger a transport limited erosion regime. Use the -f flag to fill depressions in order to reduce the effect of positive feedback loops.

g.mapset -c mapset=transport location=nc_spm_evolution
g.region region=region res=1
r.mask vector=watershed
g.copy raster=elevation_2016@PERMANENT,elevation_2016
r.sim.terrain -f elevation=elevation_2016 runs=event mode=simwe_mode \
rain_intensity=50.0 rain_interval=120 rain_duration=10 walkers=1000000 \
detachment_value=0.01 transport_value=0.0001 manning=mannings runoff=runoff

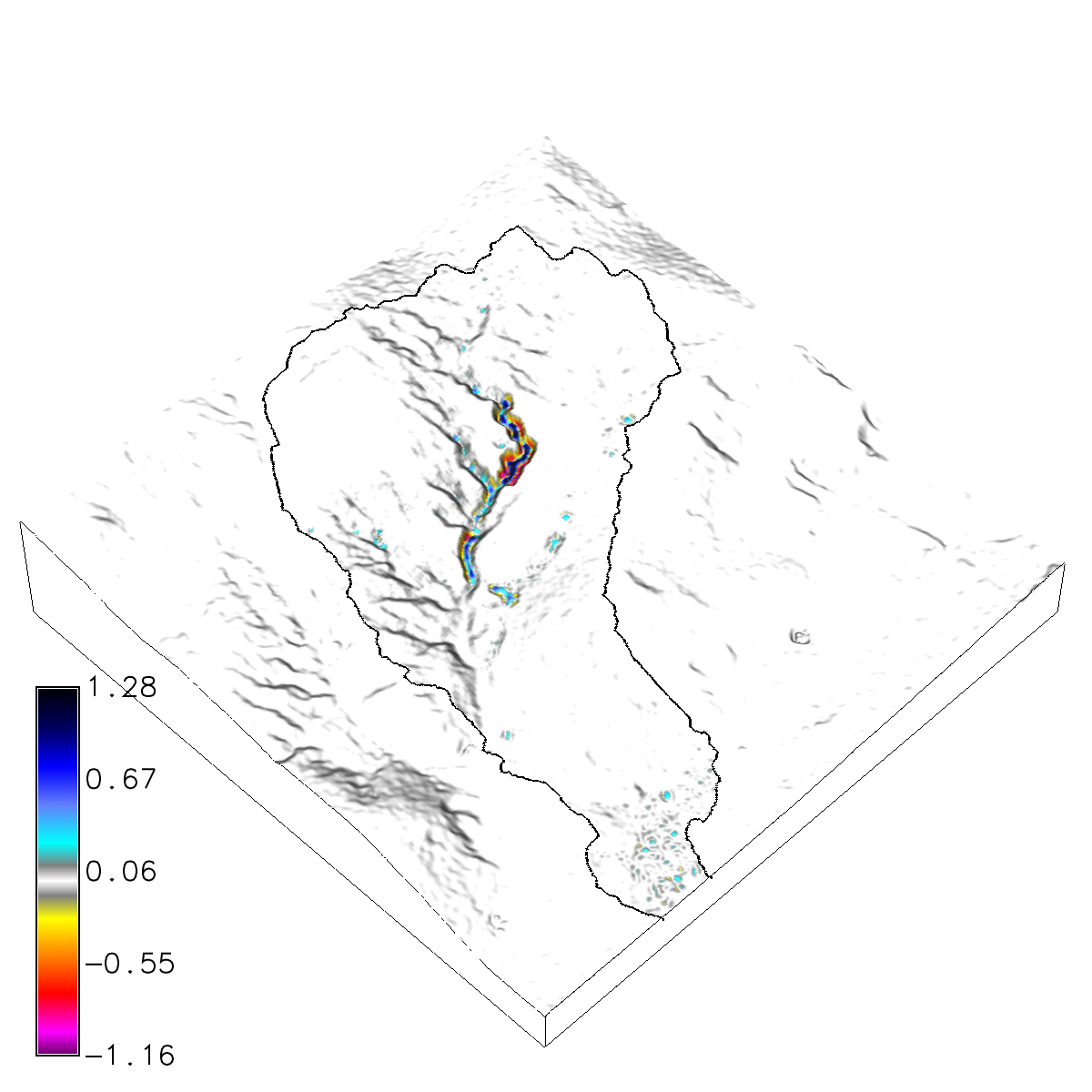

Figure: Net difference (m) for a steady state, transport limited SIMWE simulation of a 120 min event with a rainfall intensity of 50 mm/hr.

For more detailed instructions and examples see this in-depth tutorial.

ERROR MESSAGES

If the module fails with

ERROR: Unable to insert dataset of type raster in the temporal database. The mapset of the dataset does not match the current mapset.

check that the input elevation map is in the current mapset. The input elevation map must be in the current mapset so that it can be registered in the temporal database.

REFERENCES

Harmon, B. A., Mitasova, H., Petrasova, A., and Petras, V.: r.sim.terrain 1.0: a landscape evolution model with dynamic hydrology, Geosci. Model Dev., 12, 2837–2854, https://doi.org/10.5194/gmd-12-2837-2019, 2019.
