NAME

r.dem.icp - Co-register DEM surfaces using Iterative Closest Point (point-to-plane).
Aligns a source DEM to a reference DEM with robust, multi-scale ICP.

KEYWORDS

raster, registration, ICP, parallel

SYNOPSIS

r.dem.icp

r.dem.icp --help

r.dem.icp reference=name source=name output=name [mask=name] [dof=integer] [levels=integer] [stride=integer] [max_iterations=integer] [trim=float] [huber=float] [tolerance=float] [distance_max=float] [slope_max=float] [init_dx=float] [init_dy=float] [init_dz=float] [init_yaw=float] [init_roll=float] [init_pitch=float] [transform_out=name] [stats_out=name] [nprocs=integer] [--overwrite] [--help] [--verbose] [--quiet] [--ui]

Flags:

--overwrite: Allow output files to overwrite existing files
--help: Print usage summary
--verbose: Verbose module output
--quiet: Quiet module output
--ui: Force launching GUI dialog

Parameters:

reference=name [required]: Reference DEM raster
source=name [required]: Source DEM raster to align
output=name [required]: Output aligned DEM raster
mask=name: Optional stable-terrain mask (non-zero=use)
dof=integer: Degrees of freedom (4: dx,dy,dz,yaw; 6: add roll,pitch - experimental); Options: 4, 6; Default: 4
levels=integer: ICP pyramid levels (coarse to fine); Default: 3
stride=integer: Base sampling stride (cells) at finest level; Default: 2
max_iterations=integer: Max iterations per level; Default: 30
trim=float: Trimmed ICP keep fraction [0-1]; Default: 0.80
huber=float: Huber delta (m); 0 disables; Default: 1.0
tolerance=float: Convergence threshold on parameter update norm; Default: 1e-5
distance_max=float: Max point-to-plane distance (m); 0 disables; Default: 10
slope_max=float: Reject target cells with slope > (deg); Default: 90
init_dx=float: Initial dx (m); Default: 0
init_dy=float: Initial dy (m); Default: 0
init_dz=float: Initial dz (m); Default: 0
init_yaw=float: Initial yaw (deg); Default: 0
init_roll=float: Initial roll (deg) (6-DoF only); Default: 0
init_pitch=float: Initial pitch (deg) (6-DoF only); Default: 0
transform_out=name: Write final transform to file
stats_out=name: Write per-iteration stats to file
nprocs=integer: Number of threads for parallel computing; 0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs; Default: 0

DESCRIPTION
NOTES
EXAMPLES
REFERENCES
SEE ALSO
AUTHORS

DESCRIPTION

r.dem.icp performs constrained-rigid (4-DoF) co-registration of two DEM rasters, with an experimental full 6-DoF mode, aligning a source DEM to a reference DEM with an Iterative Closest Point (ICP) solver. Key properties of the implementation:

Point-to-plane ICP with projective correspondences (the target DEM is sampled at the transformed (x, y) location).
Multiscale, coarse-to-fine alignment via an adjustable sampling stride.
Trimmed ICP (keep the best residual fraction) with Huber robust weighting.
OpenMP parallelization of the main loops.
DEM-specific handling: surface normals from DEM gradients, an optional slope limit, and an optional stable-terrain mask.

NOTES

Initialization: If you already know an approximate horizontal shift or yaw (for example from metadata or phase correlation), pass it via the init_dx, init_dy, init_dz, and init_yaw options. A good init_dz is often the median of source - reference over stable terrain. In the experimental 6-DoF mode, init_roll and init_pitch (degrees) additionally seed the roll and pitch angles; they are ignored with dof=4.
Speed knobs: Increase stride and reduce levels for quick tests, and relax max_iterations.
Robustness: Use a conservative trim (0.6-0.9). Where there is a lot of real change (landslides, forest canopy), lower trim and/or huber.
Constraints: 4-DoF (dof=4) is the supported mode and usually suffices (e.g., airborne photogrammetry vs LiDAR). The four solved parameters are the three translations plus yaw (planimetric rotation about the vertical axis), which absorbs residual georeferencing rotation; roll and pitch are deliberately excluded. 6-DoF (dof=6) is experimental: rigid roll/pitch rotation is ill-conditioned for height-field DEMs and its resample is approximate, so leave it off unless you specifically need to model tilt. The residual that typically remains after 4-DoF is a sub-pixel horizontal shift and vertical offset; remove it by running r.dem.nk (Nuth & Kaeaeb) after ICP.
Validation: After alignment, inspect the residual DoD and the stats file; residual bias should be near zero on stable terrain.

EXAMPLES

The commands below use the example scene built in the r.dem toolset manual, which is derived from the North Carolina sample dataset. Build it there first.

Align the misregistered surface with four degrees of freedom, which solves three translations and yaw:

g.region raster=elev_lid792_1m

r.dem.icp source=dsm_offset reference=elev_lid792_1m \
    mask=stable_terrain output=dsm_icp dof=4 \
    transform_out=icp_transform.txt stats_out=icp_stats.csv

The reported transform is the one that maps the source onto the reference, so its signs are opposite to those of r.dem.nk. Against an applied offset of 0.4596 m east, 0.4596 m north, and 1.32 m up it returns:

tx=-0.4590844708
ty=-0.4608043693
tz=-1.3201388046
yaw=0.0000935114

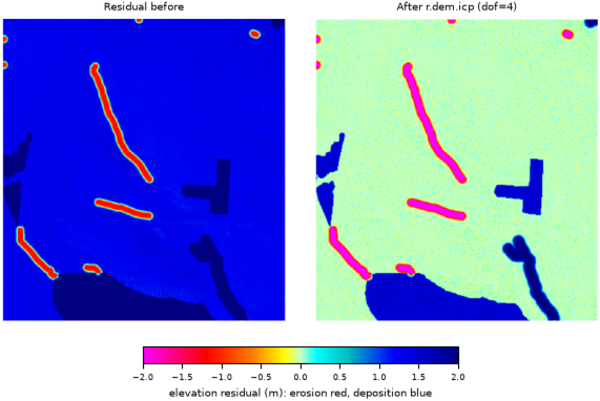

Figure: Stable-terrain residual before and after r.dem.icp at dof=4.

REFERENCES

ICP framework (point-to-point origin). Besl, P.J. and McKay, N.D. (1992). A method for registration of 3-D shapes. IEEE Transactions on Pattern Analysis and Machine Intelligence, 14(2), 239-256. doi:10.1109/34.121791
Point-to-plane error metric (minimized here). Chen, Y. and Medioni, G. (1992). Object modelling by registration of multiple range images. Image and Vision Computing, 10(3), 145-155. doi:10.1016/0262-8856(92)90066-C
Projective correspondences (target sampled at the transformed x, y). Blais, G. and Levine, M.D. (1995). Registering multiview range data to create 3D computer objects. IEEE Transactions on Pattern Analysis and Machine Intelligence, 17(8), 820-824. doi:10.1109/34.400574
Efficient ICP variants (sampling, rejection, coarse-to-fine). Rusinkiewicz, S. and Levoy, M. (2001). Efficient variants of the ICP algorithm. Proceedings Third International Conference on 3-D Digital Imaging and Modeling (3DIM), 145-152. doi:10.1109/IM.2001.924423
Linearized least-squares point-to-plane solve. Low, K.-L. (2004). Linear least-squares optimization for point-to-plane ICP surface registration. Technical Report TR04-004, Department of Computer Science, University of North Carolina at Chapel Hill. PDF
Trimmed ICP (robust to partial overlap and change). Chetverikov, D., Stepanov, D. and Krsek, P. (2005). Robust Euclidean alignment of 3D point sets: the trimmed iterative closest point algorithm. Image and Vision Computing, 23(3), 299-309. doi:10.1016/j.imavis.2004.05.007
Robust M-estimator weighting. Huber, P.J. (1964). Robust estimation of a location parameter. The Annals of Mathematical Statistics, 35(1), 73-101. doi:10.1214/aoms/1177703732
Convergence analysis of point-to-plane registration. Pottmann, H., Huang, Q.-X., Yang, Y.-L. and Hu, S.-M. (2006). Geometry and convergence analysis of algorithms for registration of 3D shapes. International Journal of Computer Vision, 67(3), 277-296. doi:10.1007/s11263-006-5167-2

Related methods not implemented here: Nuth, C. and Kaeaeb, A. (2011), The Cryosphere 5:271-290 (aspect/slope vertical-bias coregistration, provided as r.dem.nk); Segal, A., Haehnel, D. and Thrun, S. (2009), Generalized-ICP, Robotics: Science and Systems.

AUTHORS

Corey T. White, Center for Geospatial Analytics, NC State University
